Installation Guide

This guide covers installing KVM Serial and its dependencies on Windows, macOS, and Linux.

NOTE: If using the executable binaries, you do not need to also create the python environment, as this will be bundled in the application. However, steps regarding serial drivers still apply!

Requirements

Python 3.10 or higher for running from source
USB to UART bridge connecting to the CH9329 serial device
USB video capture device (for video functionality)

Platform Specific Dependencies

Note: On modern Windows and Mac, this application is signed without a paid developer certificate (between $99 and $300). You will therefore see the following prompts:

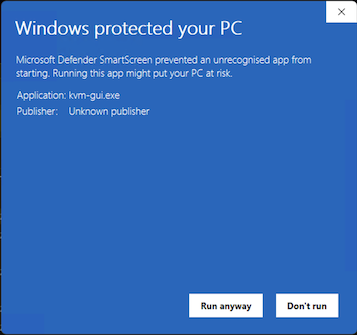

Mac OSX Security Prompt Windows Security Prompt

In order to run the binary app on Mac OSX, you will need to right click -> Open it. Otherwise, the above prompt will not show the "Open" option.

On Windows, you will need to click "More info" on the SmartScreen dialog to "Run anyway".

As always, do not run apps on your machine which you do not trust. The entire build chain and source code for this application is available in the GitHub repository for you to verify if desired.

Windows

Note: If you see "No serial ports found" and you've connected a USB serial device, ensure the drivers are properly installed (see below):

USB to UART Bridge Drivers

Most CH9329 devices use a USB to UART bridge chip to communicate with your computer. You'll need to install the appropriate drivers based on which chip your device uses.

Common USB to UART Bridge Chips:

Silicon Labs CP210x (CP2102, CP2104, CP2105, etc.)
Download: CP210x USB to UART Bridge VCP Drivers
Recommended Version: CP210x Windows Drivers v6.7.6 (Released 9/3/2020) or later
FTDI (FT232, FT234X, FT4232H, etc.)
Download: FTDI VCP Drivers
Prolific PL2303
The Prolific product page for the PL2303 has gone. An alternative is available at: Plugable USB Serial Adapter Drivers
Alternately, a GitHub repo with Windows 11-compatible PL2303 drivers is available at theAmberLion/Prolific.
WCH CH340/CH341
Download: WCH CH340 Drivers
Note: Windows 10/11 often include these drivers automatically

Installation Steps:

Download the appropriate driver for your device's chip
Extract and run the installer
Connect your CH9329 device via USB
Verify installation:
Open Device Manager (Win + X → Device Manager)
Look under "Ports (COM & LPT)" for your device
Note the COM port number (e.g., COM3, COM4)

Windows Permissions

Windows 10/11 Camera Access:

On first launch, Windows may prompt for camera access permission. The application will:

Display a Windows permission dialog asking for camera access
Wait for your response (Allow/Deny)
Continue normally after you respond

If you need to change camera permissions later: Settings → Privacy & security → Camera → Allow desktop apps to access your camera

macOS

Most USB-to-serial devices work out of the box on modern macOS systems without additional drivers.

Verifying the device:

Connect your device and verify it appears in /dev/:

ls /dev/cu.*

You should see a device like /dev/cu.usbserial-xxxxx or /dev/cu.SLAB_USBtoUART

If unavailable, you can list USB devices connected to the system using:

system_profiler SPUSBDataType

macOS Permissions

macOS requires specific permissions for camera and input monitoring:

Camera Access: The app will request camera permission on first launch
Input Monitoring: System Preferences → Security & Privacy → Privacy → Input Monitoring

Linux

USB to UART Kernel Modules

Most Linux distributions include kernel modules for common USB to UART bridge chips by default:

CP210x: cp210x
FTDI: ftdi_sio
PL2303: pl2303
CH340/CH341: ch341

Verifying driver support:

# Check if the driver is loaded (replace cp210x with your chip's module)
lsmod | grep cp210x

# Connect your device and check dmesg for detection
dmesg | tail -20

# List serial devices
ls /dev/ttyUSB* /dev/ttyACM* 2>/dev/null

If the driver isn't loaded, it should automatically load when you connect the device. The device will typically appear as:

/dev/ttyUSB0 (or ttyUSB1, ttyUSB2, etc.) for most USB-to-serial adapters
/dev/ttyACM0 for some USB devices using the CDC ACM protocol

Troubleshooting: If the device doesn't appear:

Check kernel messages: dmesg | grep -i usb
Verify the USB connection: lsusb (look for your device)
Ensure the kernel module is available: modinfo cp210x (or relevant module)

System Dependencies

Install required system libraries for PyQt5 and OpenCV:

Ubuntu/Debian:

sudo apt-get update
sudo apt-get install -y \
    libxcb-xinerama0 \
    libxcb-icccm4 \
    libxcb-image0 \
    libxcb-keysyms1 \
    libxcb-randr0 \
    libxcb-render-util0 \
    libxcb-xfixes0 \
    libxkbcommon-x11-0 \
    libgl1 \
    libegl1 \
    libxcb-cursor0

Fedora/RHEL:

sudo dnf install -y \
    libxcb \
    xcb-util-wm \
    xcb-util-image \
    xcb-util-keysyms \
    xcb-util-renderutil \
    libxkbcommon-x11 \
    mesa-libGL \
    mesa-libEGL

User Permissions

Serial Port Access:

Linux requires users to be in the dialout group to access serial ports without root privileges. If you get permission denied errors when accessing serial ports, add the user to the group:

# Add your user to the dialout group
sudo usermod -a -G dialout $USER

# Verify group membership
groups $USER

# Log out and log back in for changes to take effect
# OR reload groups in current session (may not work in all cases):
newgrp dialout

Important: You must log out and log back in (or restart) for the group changes to take effect system-wide. After logging back in, verify with:

groups  # Should show 'dialout' in the list

If you see "Permission denied" errors when trying to access /dev/ttyUSB* or /dev/ttyACM*, this is the most common cause.

Common Issues

"No serial ports found"

Windows: Install serial drivers (see above). Check Device Manager for the device.
macOS: Check /dev/cu.* for the device
Linux: Check /dev/ttyUSB* or /dev/ttyACM*
Linux: Verify you're in the dialout group
Try unplugging and reconnecting the device
